Objects

Objects give structure and identity to the entities involved in customer activity. A product viewed, an order placed, or an appointment booked becomes more useful when the event points to the specific product, order, or appointment involved.

Hellotext includes built-in object structures for common entities. You can create a custom structure when your business needs another kind of entity.

Understand structure, instance, and event

These three concepts work together:

• An object structure defines the type of entity and its properties. For example, appointment with reference, room, and scheduled date.
• An object instance is one specific entity that follows that structure. For example, appointment APT-1042 in room 3.
• An event records something that happened and can point to the instance. For example, appointment.booked for that appointment and customer.

Creating a structure or instance does not itself record a booking or subscribe a customer. APT-1042 is your business reference: it is not the Hellotext ID of the structure, instance, or a property.

The structure is reusable. Instances retain context, while events build the history of what happened over time.

Use the right data model

Use an object when the entity needs its own identity, properties, and potentially several events during its lifecycle.

Use a customer profile property when a value describes the customer’s current state, such as preferred store or membership tier. Use an event without an object when recording the occurrence is enough and there is no separate entity to preserve.

For example:

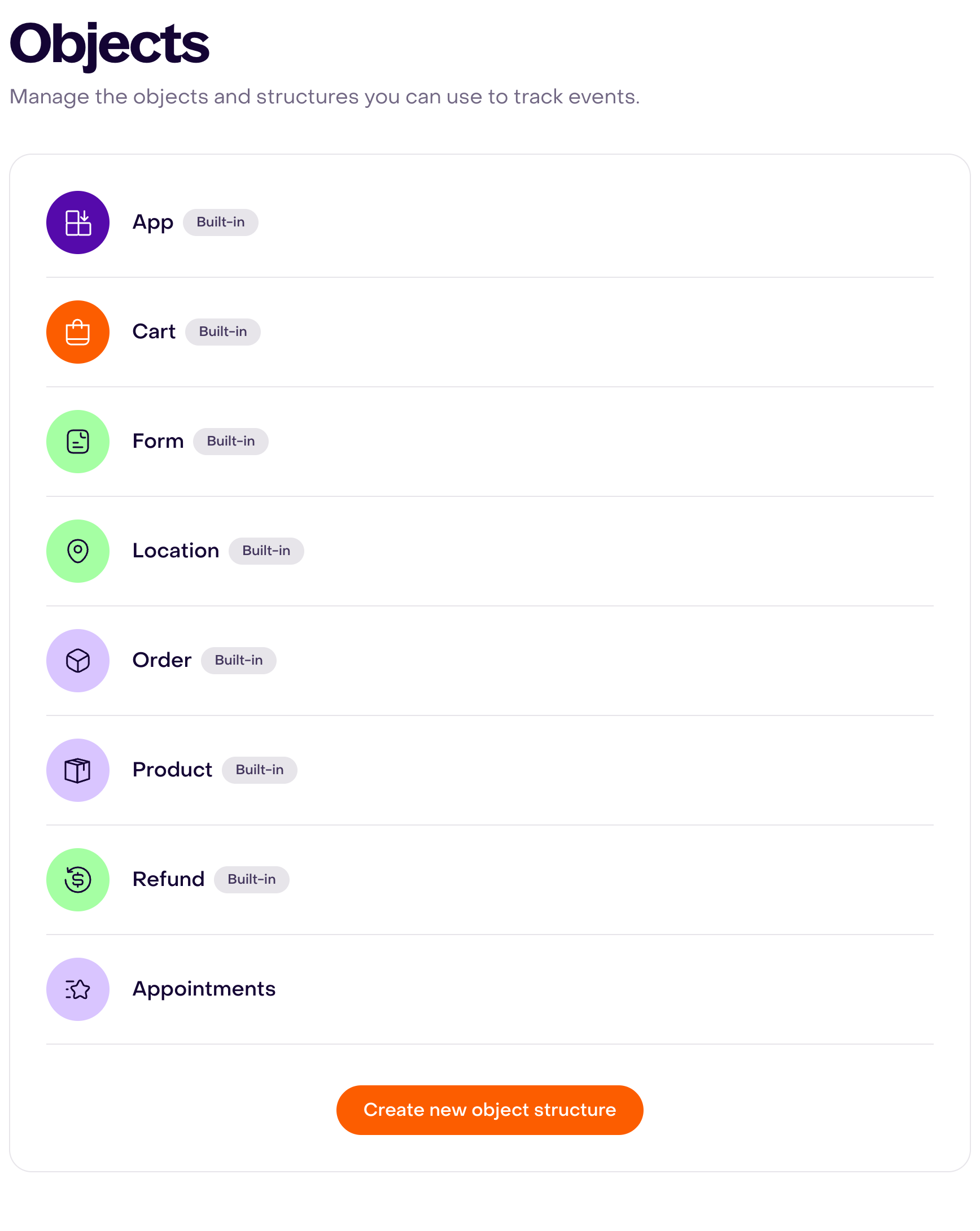

Reuse built-in objects

Hellotext already includes structures for:

• apps;
• carts;
• forms;
• locations;
• orders;
• products; and
• refunds.

Connected eCommerce platforms and Hellotext tracking use these structures to preserve their expected meaning. Add properties to a built-in object when you need more context, but do not create a custom replacement for a product, order, cart, or another equivalent built-in object.

Built-in names cannot be changed and their structures cannot be deleted.

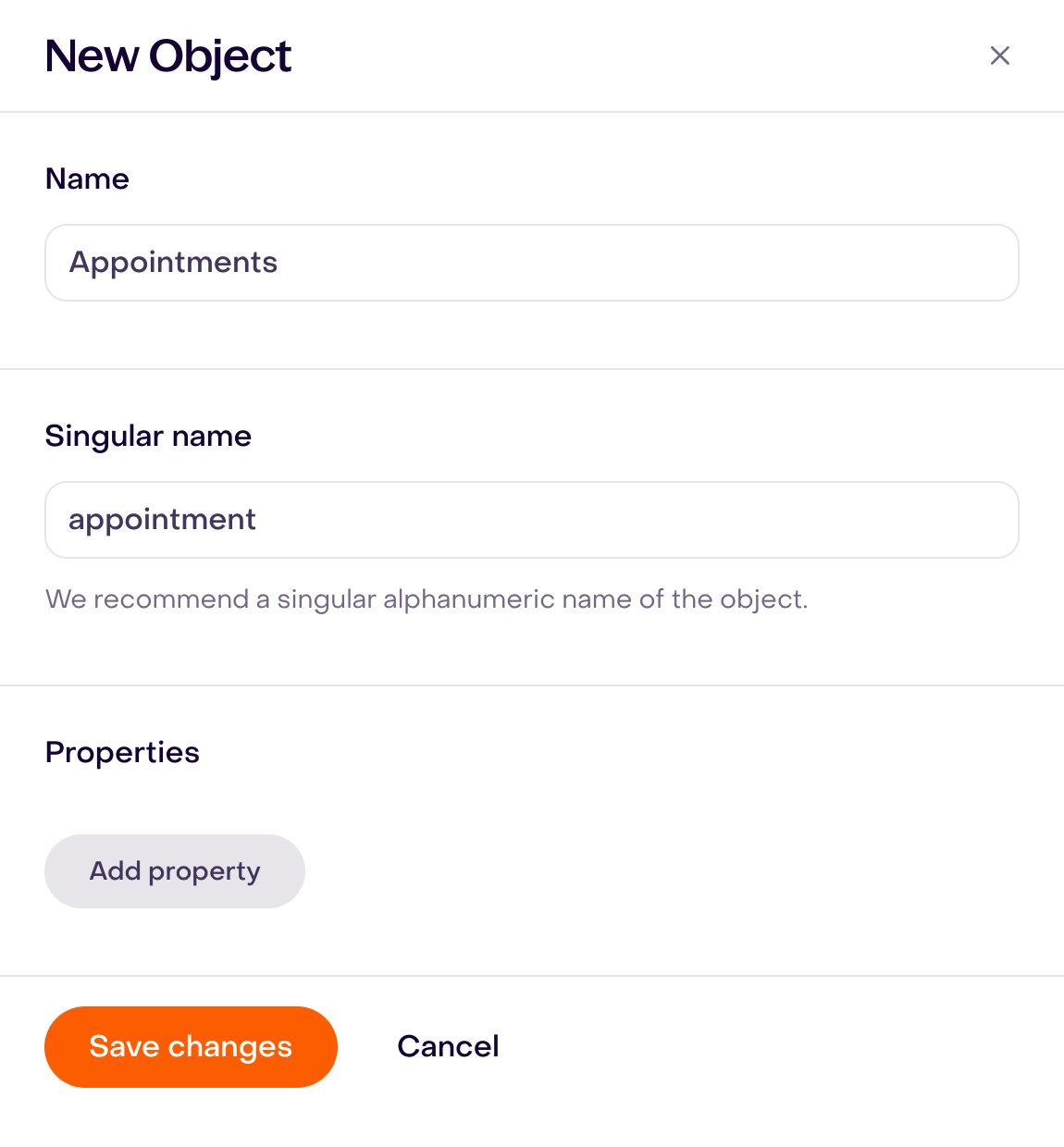

Create a custom object structure

You need a compatible plan and permissions to create custom object structures.

1. Open Settings.
2. Select Objects.
3. Click Create new object structure.
4. Enter the display name, such as Appointments.
5. Enter a stable singular name, such as appointment.
6. Add the properties every instance can contain.
7. Save the structure.

The display name identifies the object for your team. The singular name is the technical identifier used by the API and event tracking. Keep it stable and avoid creating another structure with the same meaning.

Design the properties

Add only the fields that describe the object itself. Depending on the available property type, you can model text, numbers, dates, times, yes-or-no values, lists, money, URLs, payment methods, and sales channels.

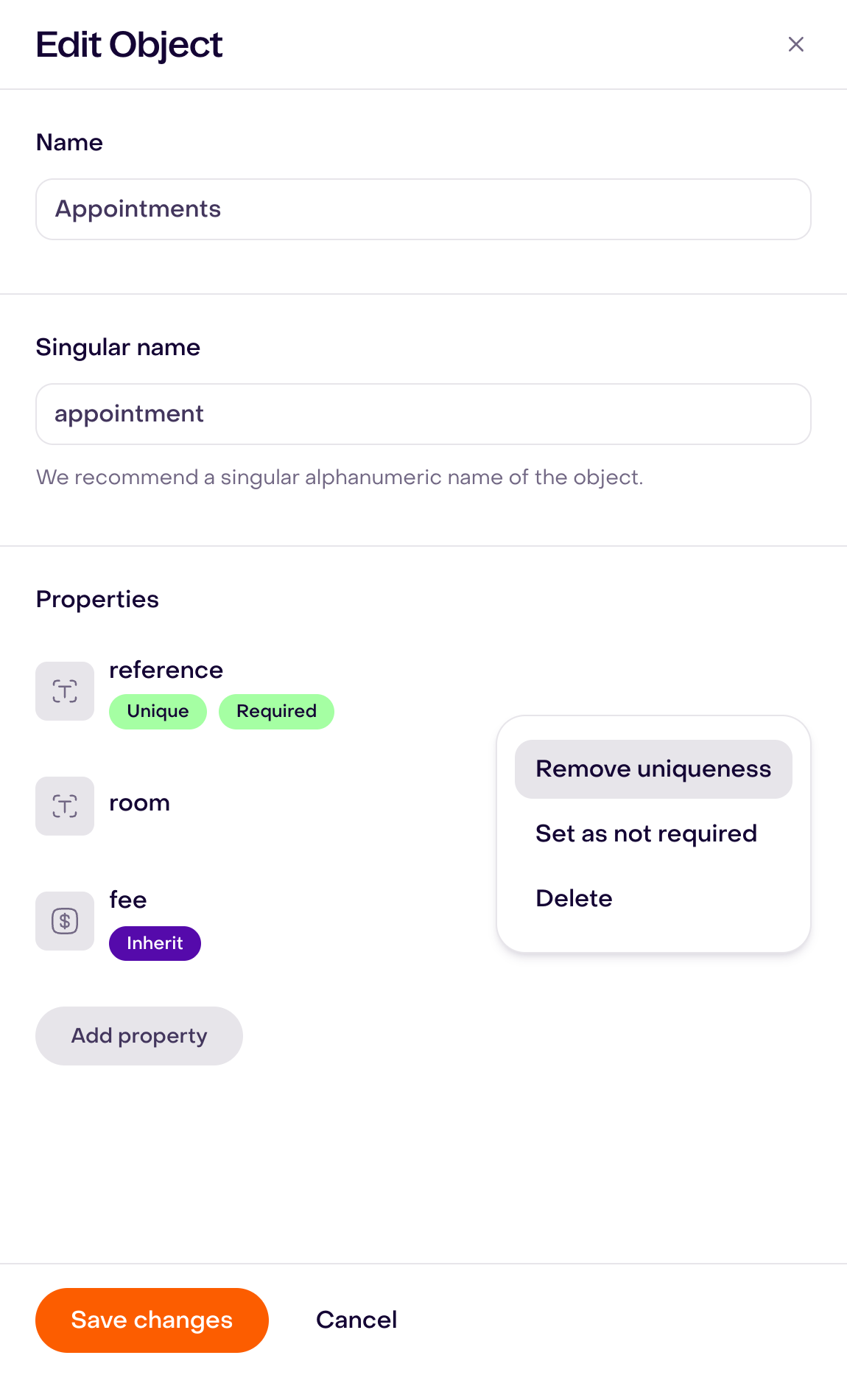

For each property, decide whether it should be:

• Required: every instance must provide a value.
• Unique: the same value cannot belong to more than one instance of that object.
• Optional: an instance can exist without the value.

The Unique option appears only for supported kinds. Not every property kind supports uniqueness; check the saved configuration or the API response’s unique value.

Use a unique property for a stable external identifier such as an appointment reference, membership number, or service ticket ID. Do not mark fields like status or category as unique.

You can reorder properties. For custom objects, put the value that best identifies each instance first because Hellotext uses the first property as its main label in the object list.

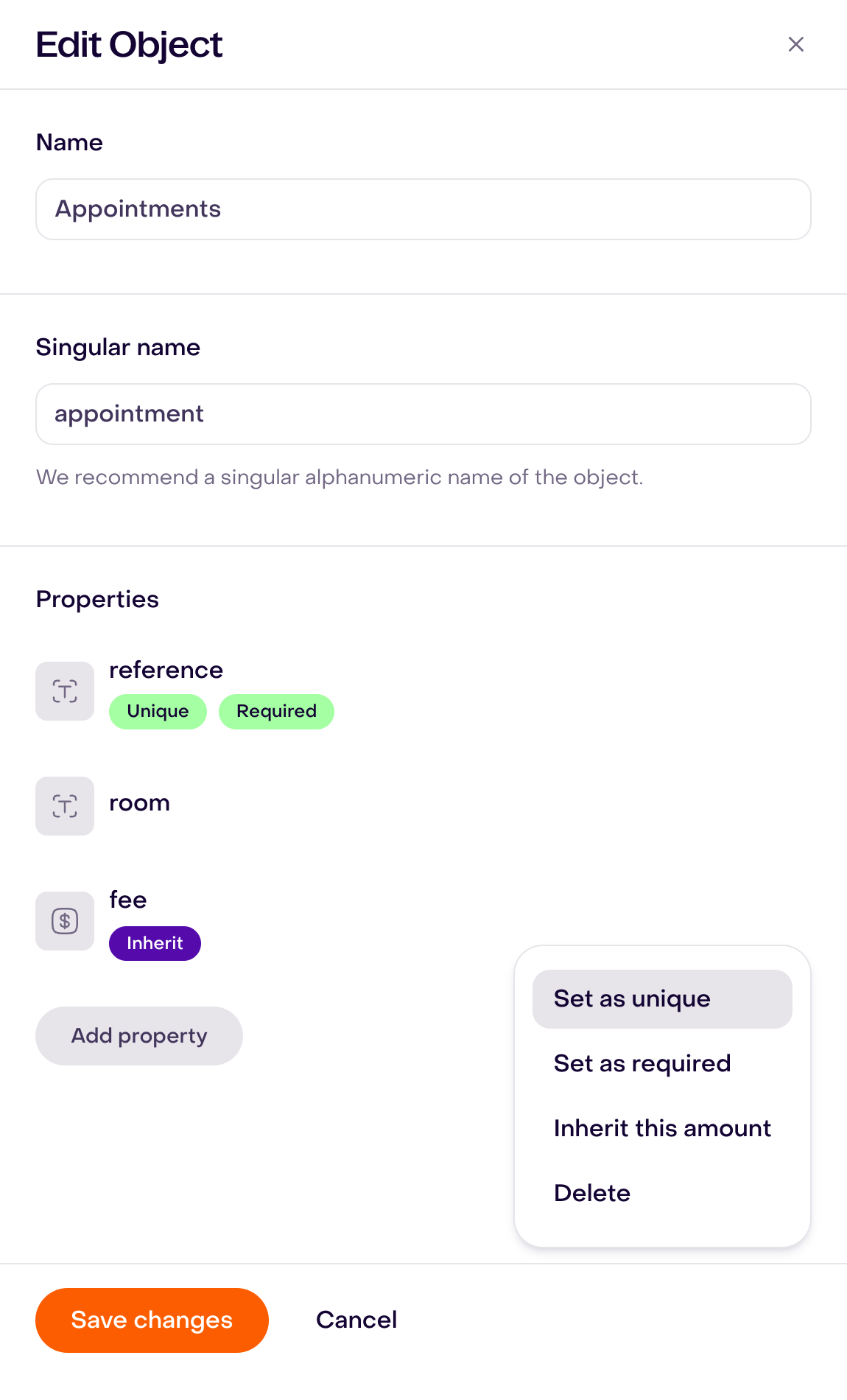

Inherit an event amount

In a money property’s menu, select Inherit this amount and save the structure. The Inherit label identifies the chosen property; only one can be selected.

Manual activity recording can use that value when the event amount remains zero. Use it if the object’s value represents that activity’s amount, and check the resulting currency.

For a custom action sent through the API, send amount and currency explicitly: do not assume manual recording’s inheritance will apply. Use major currency units, for example 89.90 with USD, and the actual occurrence amount when it differs from the object’s value.

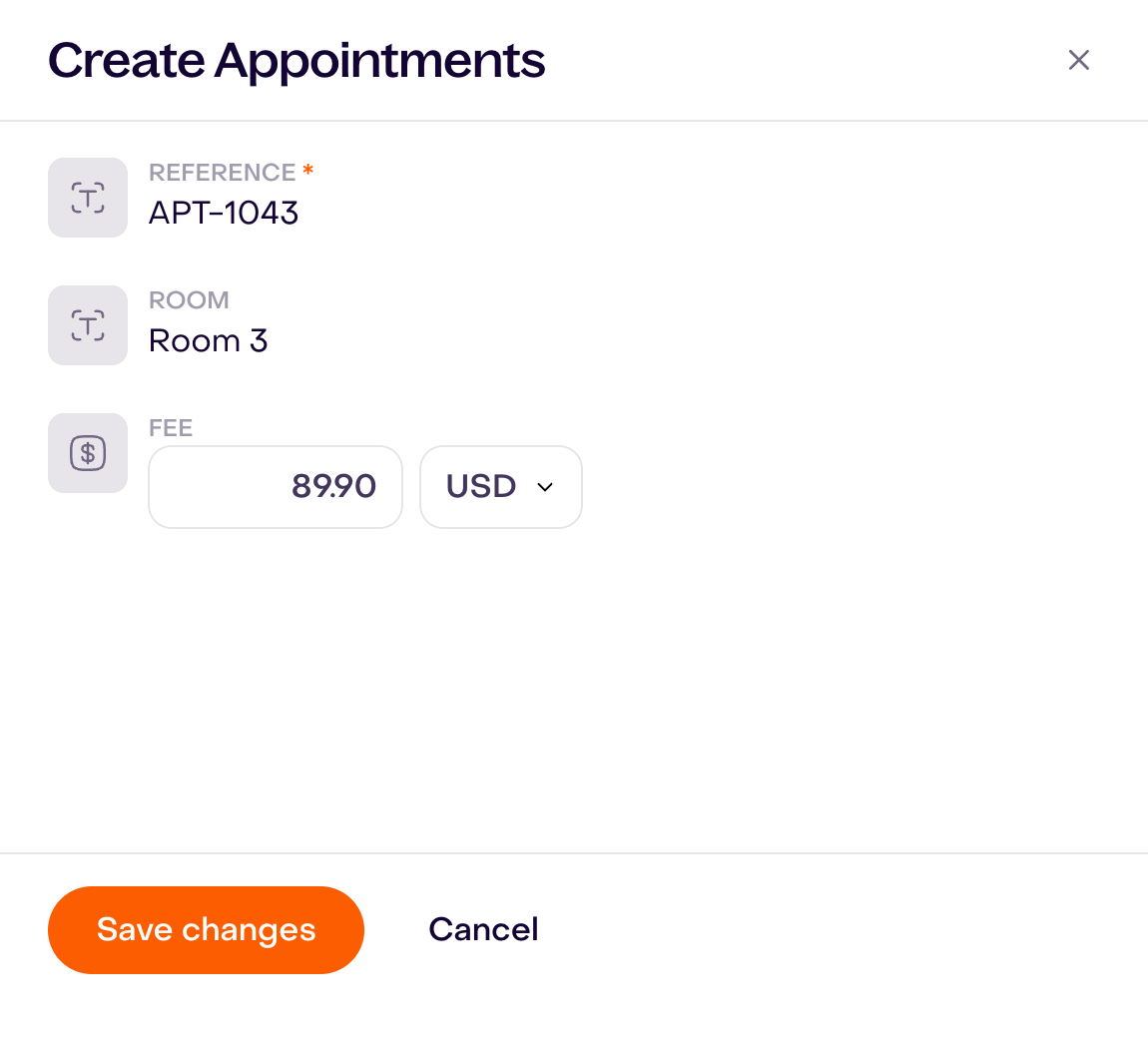

Create and manage instances

An object structure must have at least one property before you can create instances from Hellotext.

1. Go to Settings > Objects.
2. Open the structure you want to manage.
3. Click Create new followed by the object name.
4. Complete every required property and the optional context you need.
5. Save the instance.

From the same list, you can edit or delete an instance. Deleting it cannot be undone and can remove the context associated with its events, so confirm that integrations and tracking no longer depend on it.

Create a structure through the API

Use the Objects API to list built-in and custom structures or to create and manage custom ones.

GET /v1/objects lists structures and GET /v1/objects/OBJECT_STRUCTURE_ID retrieves one. POST /v1/objects creates a custom structure; it does not create a particular appointment. The following body illustrates that creation, with a display title, singular name, and property definitions:

{
  "title": "Appointments",
  "name": "appointment",
  "properties": [
    {
      "kind": "text",
      "name": "reference",
      "required": true,
      "unique": true
    },
    {
      "kind": "text",
      "name": "room",
      "required": false,
      "unique": false
    }
  ]
}

Authenticate from your server using a private token for the same business (Authorization: Bearer YOUR_PRIVATE_TOKEN) and an active subscription with compatible feature access and permissions. Do not put the token on a public page.

A valid creation returns HTTP 201 with the structure and properties; validation errors return 422. Store the structure id and property IDs separately. Neither is an instance ID. Check the reference for full kinds and formats, and inspect the actual returned values, including required, unique, and modifiable.

PATCH /v1/objects/OBJECT_STRUCTURE_ID manages an existing structure’s properties: retain their IDs when updating and retrieve the structure afterward. To rename it, use Settings > Objects > Edit; do not assume a successful PATCH renamed title or name.

Associate an object while tracking

When tracking a custom action through the API, identify the structure with object_type. Use the singular name, such as appointment, or the structure ID.

The action, such as appointment.booked or appointment.confirmed, must already be defined. The profile ID must belong to the real customer in the same business; creating the object does not demonstrate messaging consent. If your integration uses a session, preserve its real identifier and correct association with that customer.

Then choose one of these approaches, without sending both in the same request:

• Send object with the ID of an existing instance.
• Send object_parameters to create a new instance with the event.

To create a new instance while tracking:

{
  "action": "appointment.booked",
  "profile": "CUSTOMER_PROFILE_ID",
  "object_type": "appointment",
  "object_parameters": {
    "reference": "APT-1042",
    "room": "Room 3"
  }
}

To associate an existing instance instead:

{
  "action": "appointment.confirmed",
  "profile": "CUSTOMER_PROFILE_ID",
  "object_type": "appointment",
  "object": "OBJECT_INSTANCE_ID"
}

The examples are JSON bodies for POST /v1/attribution/events; replace placeholder IDs with real ones. Use property names directly inside object_parameters, such as reference, or an object_parameters.property_by_id map keyed by property IDs. Do not pass the structure ID in object. Required and unique rules are validated when Hellotext creates the instance.

object_parameters attempts to create an instance: it does not automatically find or update one with the same reference. Tracking returns received; it does not return the instance ID or prove the event has finished processing. Instance validation or creation can happen before event processing completes.

Do not send object_parameters repeatedly for the same unique entity. To obtain its public ID, find the instance by its reference in Settings > Objects > Appointments, open the row menu and copy the Edit link. The instance ID is the segment between /instances/ and /edit; it is not the structure ID or an internal numeric ID from a nested response. Store that mapping to your reference. GET /v1/objects returns structures, not appointment IDs.

Use object for subsequent occurrences. Reusing the object does not deduplicate events: reconcile activity before resending after a timeout or uncertain result.

Update a structure carefully

Adding an optional property does not require existing instances to have a value. Adding a required property means new and edited instances need that value, so prepare the source data first.

Before enabling uniqueness, check existing duplicates; changing the rule does not clean historical data. Do not change the kind of a property with stored values without checking compatibility.

Changing a singular name or property name requires updating every integration and tracking request that sends it. Reordering properties changes their presentation, while changing or deleting them can affect data already stored.

Deleting a custom structure removes its associated instances and data and cannot be undone. Stop tracking it and review dependent actions, routes, segments, and integrations first.

Troubleshoot objects

For missing activity after tracking, use Troubleshoot missing signals or activity.
